The 20-minute wire tuck (fastest safe baseline)
Your dash has a GPS, a radar detector, and a dash cam — and their cords are all over the place. You don’t have to just “deal with it.” Before you buy expensive kits or start cutting into your car’s interior, try the simple tuck: for a portable add-on CarPlay screen, you only need to hide the power cable. By the end of this article, you’ll know how to tuck that cable out of sight in about 20 minutes with no cutting or drilling — and exactly when a hardwire kit or extension cable is worth the money.
Using a plastic trim tool, press the cable into the gap between the dashboard trim and the base of the windshield. From there, feed the wire down toward the center console, tucking it into every natural seam you find along the way. This keeps the wire out of sight without needing any new hardware — and it works for roughly 90% of vehicles.
Should you even do this?
It is worth asking if the effort is worth the risk. Many drivers simply accept the mess. They leave the cords for their GPS, radar detectors, and dash cams scattered across the dash and just “deal with it.”
On two-wheelers, routing a phone-mount charge lead from the USB cubby to the handlebar mount raises questions about waterproofing and whether you need to drill a hole. Some riders try a “bodge” where they route the cable so the cubby door closes directly on it. It works, but the cable chafes — one owner reported it was already chafing after 8,000 miles done that way.
Pick your cable
Don’t start routing until you have the right wire for the job. Different devices require different setups.
For add-on screen systems, the wiring is specific. Front camera harnesses are usually about 158 cm, while rear ones are around 313 cm. These should be routed along existing harness paths. Also, remember that USB-C is great for bench testing your device at home, but for actual riding or driving, the power must be hardwired.
When buying protection for your wires, use split loom tubing. This is a protective sleeve that comes in different inner diameters like 1/4”, 3/8”, or 1/2”. You should measure your cable bundle first so you pick the right size.
If you are looking for a replacement cable for a camera, check the resolution and the connector. You need to know if it supports 720p or 1080p and if it uses a specific connector, like a 4-pin 2.5mm plug.
What to buy: hardwire kits, looms, and clips
Prices in this guide are vendor listings as of 2026-08-07 and can change, so confirm the current price on the seller page before you buy.
Buying the right parts saves money and frustration.
- Hardwire USB kits: Motorcycle hardwire USB kits tend to run $15–$30. They commonly include a fused positive wire with a 10A inline fuse, a negative wire, ring terminals, and the charger head.
- Split loom tubing: This is the top-recommended sleeve for bundling and protecting routing cables. Choose flame-retardant, heat-resistant polypropylene loom rated for the vehicle temperature range, like -40°F to 257°F, and match the inner diameter to your cable bundle.
- Adhesive cable holders: UGREEN’s 6-pack of adhesive holders is a solid mid-range choice. The adhesive holds up to the temperature swings common in car interiors, and the multi-slot design lets you run several cables side-by-side.
Be careful with cheap sticky clips. Some users have reported going through three different brands only to have them fall off immediately or peel away after a few weeks.
When you need a cable extension
If you have a long vehicle like a truck, an RV, or a bus, you might need extra length for your rear camera.
Here are some real-world price and compatibility points to help you choose:

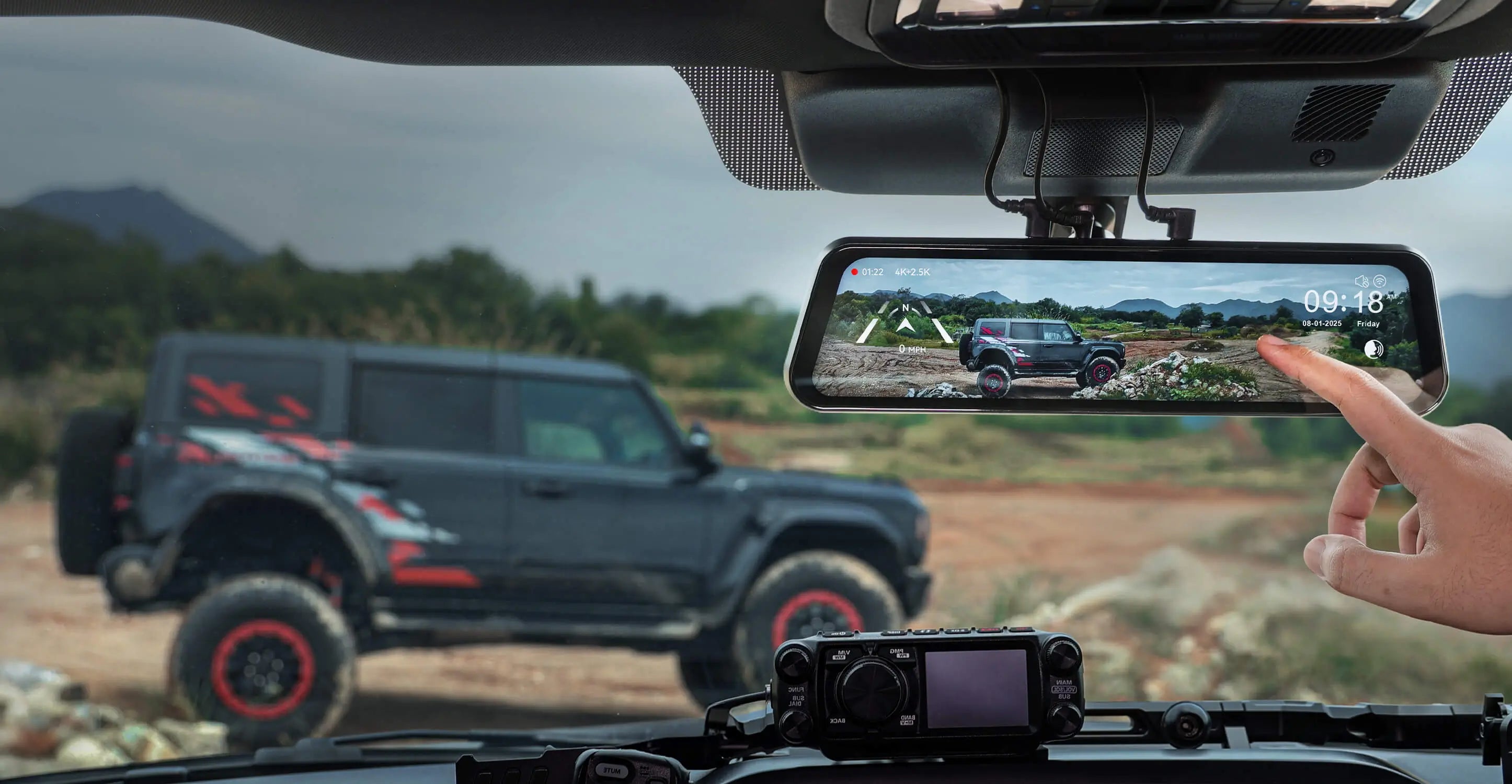

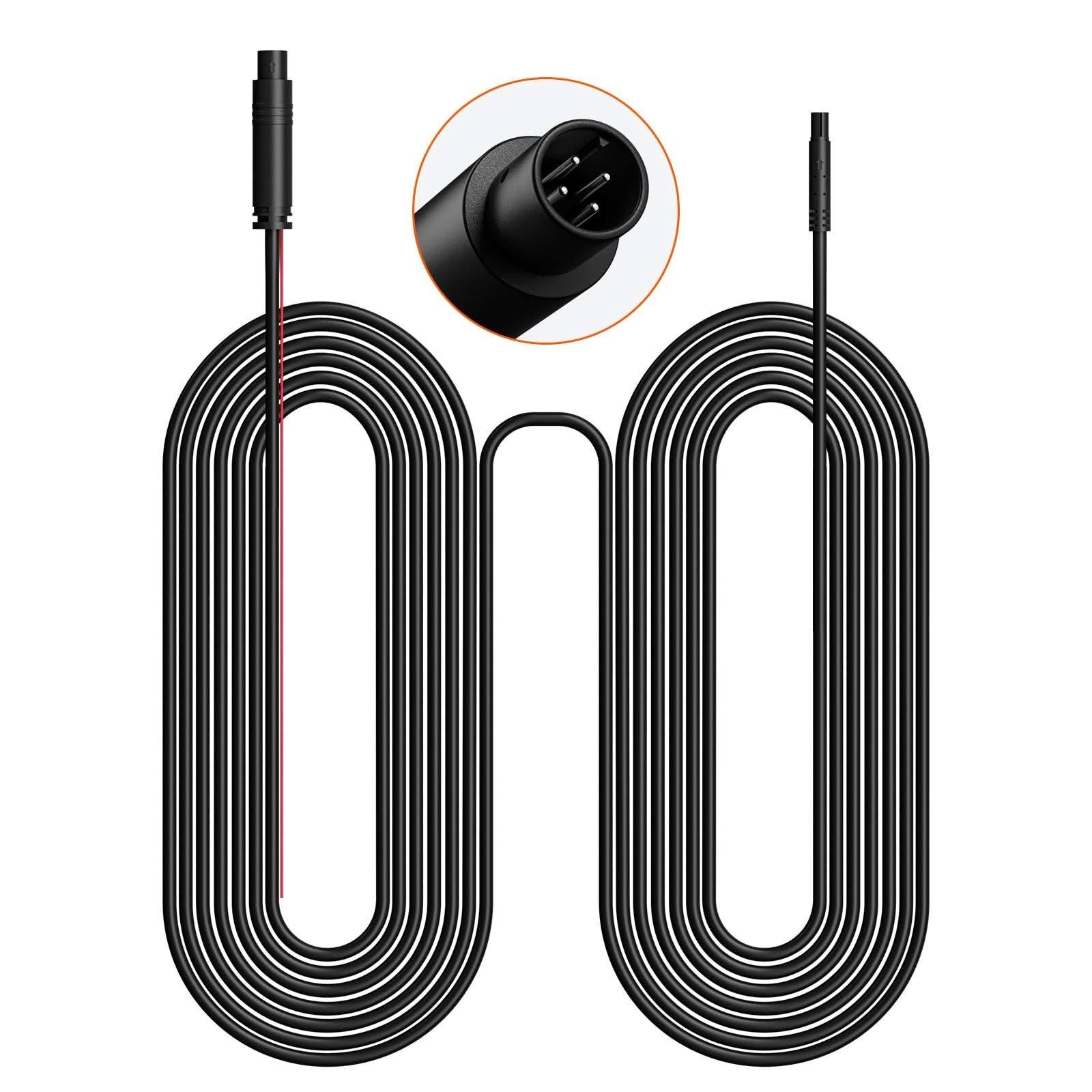

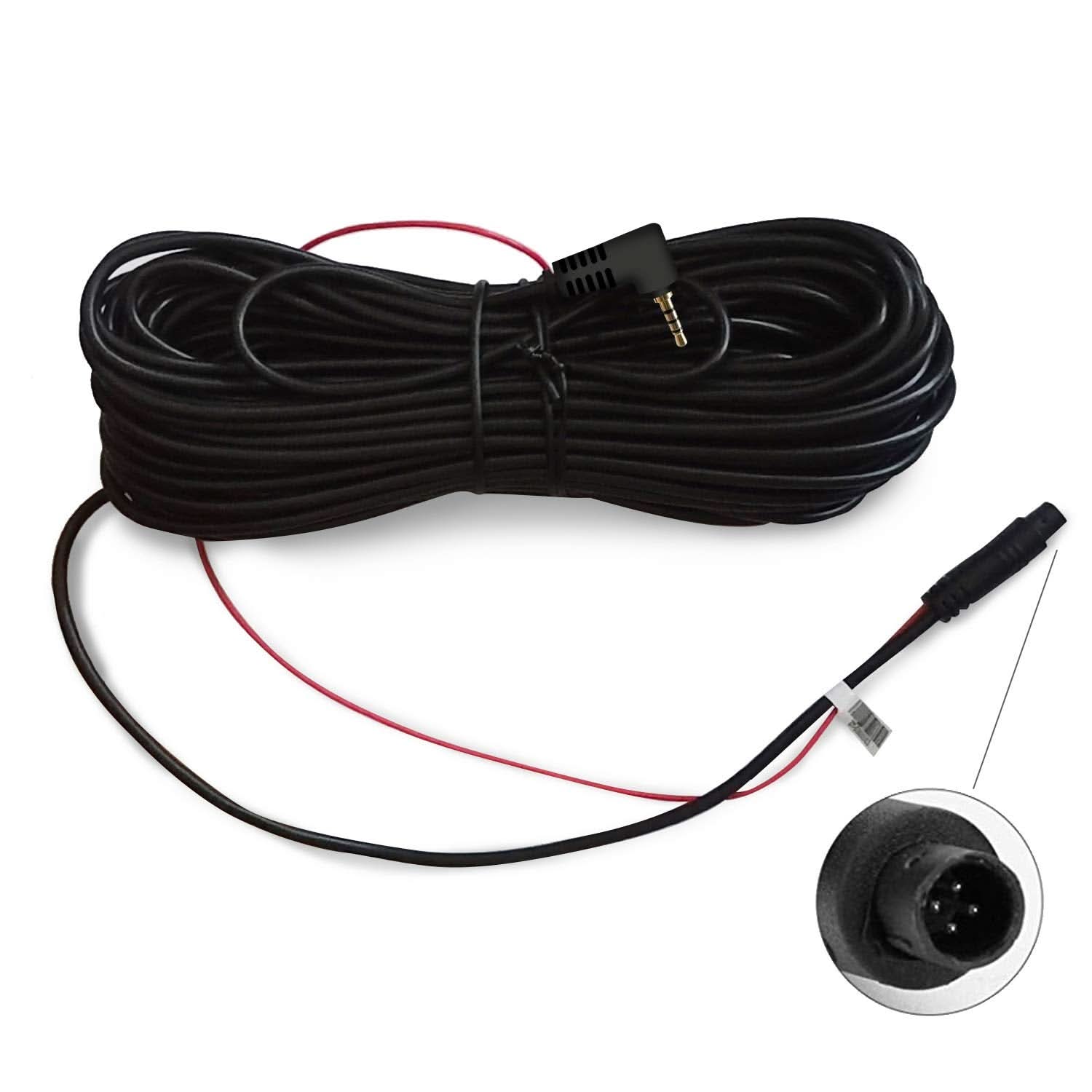

- WOLFBOX cables: These come in 33 ft, 50 ft, or 98 ft lengths. They support 720p and 1080p video. The 33/50/98 ft versions are around $25.99, while the G890 33-foot version is $19.99 (regularly $29.99). Note that these only work with specific WOLFBOX models like the G930, G900, G840S, G850, I07, and I17.
- Redtiger cables: The F7N-series 33/50-foot cables are designed for long-body vehicles like SUVs and RVs. Make sure to check if your specific Redtiger model (like the F17 or VC70) is compatible.
Compatibility checks: mounts, airbags, and vehicles
Before you commit to a route, check your mounting hardware and your car’s safety features.
In the motorcycle world, Quad Lock is the biggest name. They use a secure twist-lock mechanism. However, the ecosystem can get expensive. For example, a wireless charging head can cost $74.99, a 12V adapter $39.99, and a vibration dampener $19.99.
RAM Mounts is the second most popular option. They use a “claw” mechanism and ball-and-socket joints for easy adjustment. While reliable, RAM doesn’t guarantee your phone won’t be damaged by engine vibration. This is a gap that Quad Lock’s vibration dampener is designed to fill.
Safety is the most important check. When routing wires near the A-pillar (the post between your windshield and side window), stay on the outer edge of the trim. Do not route wires along the inner edge, as this could interfere with the side-curtain airbag if it deploys.
Note that different guides sometimes disagree on this. Some suggest running the wire behind the airbag, while others say the outer edge of the trim is safer. Always check the specific advice for your vehicle model.
Install it the safe way
The cleanest route follows a specific path: start at the fuse box, go up the A-pillar trim, move behind the headliner edge, down the windshield pillar, and behind the rearview mirror housing until you reach the mount. Always use existing grommets (the rubber holes used to pass wires through metal) instead of drilling new ones.
To prevent damage, follow these three rules:
- Create a drip loop: Before a cable reaches a connector, let it hang in a small downward loop. This way, water flows past the plug instead of straight into it.
- Leave a service loop: Leave a little bit of extra slack at the head of the mount. This ensures that when you turn the steering wheel, the cable doesn’t get pulled too tight.
- Slack at the hinges: If a cable has to cross a hatch or a trunk hinge, leave plenty of slack. If the wire is too tight, the constant opening and closing will eventually wear it down or snap it.
Finally, if you are hardwiring power, use a smart 12V-to-USB adapter. A good one won’t send power to your phone until the input voltage reaches about 13.5 volts — typically when the engine is running — and it cuts off when the voltage drops below about 12.5 volts. That way, even if you accidentally leave your phone mounted and plugged in overnight, it won’t drain the battery.
What the research doesn’t yet prove
While these methods are widely used, keep in mind that some claims aren’t backed by formal testing.
There aren’t many professional reviews specifically for routing hardware. We don’t have authoritative data on how long different brands of sticky clips or split-loom tubing actually last in extreme car temperatures.
Similarly, there is no single “proven” way to route wires around an airbag, as guidance remains inconsistent across different manuals. Lastly, while some mounts claim better vibration protection, there are no independent measurements that settle exactly how much better one brand is than another at protecting your phone’s camera.
FAQ
How long does the basic wire tuck take? About 20 minutes for a portable add-on screen, with no cutting or drilling. Press the cable into the gap between the dash trim and the windshield base with a plastic trim tool, then follow the seams down to the console.
Do I ever need to drill? Use existing grommets instead. They are the rubber holes already fitted where wires pass through metal, and they keep the panel and the wire intact.
Is it safe to run a wire up the A-pillar? Stay on the outer edge of the trim, away from the side-curtain airbag path. Guidance is inconsistent between manuals, so check the advice for your own vehicle before you commit.
Which size split loom should I buy? Measure the cable bundle first, then match the inner diameter — 1/4”, 3/8”, or 1/2”. Choose flame-retardant, heat-resistant polypropylene rated for the vehicle temperature range.
Will a hardwired USB charger flatten my battery? A smart 12V-to-USB adapter will not. It waits for input voltage near 13.5V, which normally means the engine is running, and cuts off below about 12.5V.
