Quick answer: which should you buy?
Prices in this guide are vendor listings as of 2026-08-09 and can change, so confirm the current price on the seller page before you buy.
You come back from a three-day trip, hit the start button, and nothing happens — the dash cam’s parking mode has drained your 12V battery down to 10V. If you want to avoid that no-start morning, a battery pack is the safer route: it costs more, but it keeps parking-mode power off your car’s starting battery. A hardwire kit is the budget option at $10–$20, but it draws from the car’s 12V battery and needs careful low-voltage settings to avoid leaving you stranded.
- Cost: Expect to spend $10–$20 on a basic hardwire kit, compared to $60–$150 for a decent dash cam battery pack.
- The Risk: Hardwired parking mode can kill your car’s 12V battery over time. Some owners report coming back to a car that won’t start — one measured their battery at 10V after three days.
- The Solution: To avoid these “no-start” mornings, some owners and reviewers end up switching to a dedicated battery pack.
Battery pack vs hardwire kit: how they compare
The tradeoff between these two options is essentially a balance of cost and convenience versus total insurance for your vehicle’s battery. By the end of this comparison, you’ll know which setup will keep your dash cam recording in parking mode without leaving you with a car that won’t start.
A battery pack is generally simpler to install because it doesn’t require tapping into your car’s complex electrical system. It is designed for the low power draw of a dash cam and often includes temperature protection for your car’s interior. However, you will need to ensure it charges daily.
Hardwiring is more invasive. It involves connecting the camera directly to your car’s fuse box. While this provides continuous power from the vehicle, it puts your car’s main battery at risk if the settings aren’t perfect.
| Feature | Hardwire Kit | Battery Pack |
|---|---|---|
| Typical Price | $10–$20 | $60–$150 |
| Installation | 45–120 mins (single vs dual cam) | Generally simpler, needs daily charging |
| Power Source | Your car’s 12V battery | Its own rechargeable cells |
| Main Benefit | Cheapest route to parking mode | Keeps parking-mode draw off your car battery |
Capacity also varies wildly. For example, the VIOFO BP100 offers 7650mAh, which can run a single-channel camera for up to 32 hours. If you add the EP100 expansion, that capacity jumps to 22950mAh, giving you about 96 hours of coverage.
Choose a battery pack if…
Pick a battery pack if your primary goal is to keep your car’s starting battery healthy and you need extended parking coverage.
- Battery Longevity: Dedicated packs stop you from draining the built-in battery that starts your engine. While high-end packs can run $350–$400, they offer much better peace of mind.
- Reliable Cycles: A quality pack like the THINKWARE iVolt Mini uses LiFePO4 cells rated for over 2,000 cycles. It can provide up to 20 hours of parking mode and recharges in just 45 minutes.
- Maximum Runtime: If you need a long run, VIOFO’s BP100 is a heavy hitter. It provides 32 hours of standard coverage and can reach ~96 hours with the expansion battery.
- Avoiding “No-Starts”: This route completely bypasses the real-world battery deaths reported by hardwire users.
Choose a hardwire kit if…
Choose the hardwire route if you want the lowest possible price, want your camera to be “always on,” and are confident in your car’s battery health.
- Budget Friendly: At only $10–$20, a kit is a tiny fraction of the cost of a battery pack.
- Cleaner Setup: A standard kit uses three connections: constant BATT power, ignition-switched ACC power, and a chassis ground. This setup frees up your 12V cigarette lighter socket for other devices.
- The Workload: Be prepared to spend time on it. A single-channel install takes 45–90 minutes, while a dual-channel (front and rear) setup takes 90–120 minutes.
- Safety Features: Quality kits come with extra accessories, like 8 fuse taps and a low-voltage cutoff (often set at 11.6V) to prevent total drainage.
Pro Tip: If your battery is old or weak, setting your cutoff too high (like 12.4V) might mean your parking mode never actually turns on.
The hardwiring risk: draining the car battery
The biggest danger of hardwiring isn’t a theory—it is a very real “no-start” situation.
Even if you use a 3-wire kit with a low-voltage cutoff, there is a risk. One owner reported returning to their car after just three days to find a battery sitting at 10V, leaving them stranded. Over a longer period, like a year, this constant draw can ruin a 12V battery entirely.
Low-voltage cutoff settings are vital. If the setting is too conservative (around 12.4V), an older battery might never reach the threshold required to trigger parking mode. If the setting is too generous (too low), the camera might drain the battery past the point of no return.
Battery pack risks: cold and heat
Battery packs aren’t a perfect solution; they are sensitive to the climate inside your car.
Extreme cold is a major hurdle. Below 0℃, many packs simply won’t charge. If you only take short trips, you might only get about 3 hours of parking mode because the battery hasn’t had enough time to recharge in the cold.
Extreme heat is also an issue. High temperatures can degrade the cells. Some owners have reported power banks swelling after a couple of years or losing charge rapidly when sitting in a hot car.
Compatibility and setup checks to run before you buy
Before you install anything, run these checks to ensure you don’t end up with a failed setup.
- Check Fuse Sizes: Your fuse tap must match your car’s specific form factor, such as Micro2, Micro3, Mini, ATO, or LPM. A mismatch means poor contact and intermittent power.
- Orient the Fuses Correctly: In a fuse tap, put the vehicle’s original fuse in the slot closest to the blades. Put the dash cam fuse in the auxiliary slot. If you reverse these, you could bypass the factory circuit protection.
- Use the Right Amperage: Use a 2A or 5A fuse for the dash cam slot. Using a 15A fuse on a camera that only draws 0.5A is a fire hazard, as a short circuit could melt the wires before the fuse ever blows.
- The Installation Workflow:
- Locate your fuse box.
- Use a multimeter to find the ACC and BATT circuits.
- Fit your fuse taps.
- Connect the ground to bare metal.
- Test everything before you put the panels back on.
What to buy: top battery packs and hardwire kits
Depending on which route you take, here are the products typically recommended.
- THINKWARE iVolt Mini: Often considered the gold standard for packs, using LiFePO4 chemistry with a 45-minute recharge time ($209.99).
- 70mai BL96NNX: A great value choice ($219.99) that uses LiFePO4 cells and offers a 60-minute hardwire recharge.
- VIOFO BP100: A robust 7650mAh pack that can hit 32 hours of coverage, or up to 96 hours with the EP100 expansion. Note that it is one of the most expensive packs in this class; confirm the current US price with the seller.
VIOFO BP100 7650mAh High Capacity Dash Cam Battery Pack for Parking Mode Protection, Fast Charging, Built-in Bluetooth
gearnudge.com
- Best for
- The VIOFO BP100 runs up to 32 hours of parking coverage, or about 96 hours with the EP100 expansion.
- Avoid if
- You need confirmed live price or guaranteed fit from this page.
- Evidence
- Listing and source evidence
- AZDOME JYX05: A 3-lead USB-C kit with switchable low-voltage cutoffs (11.8V to 12.4V) and four fuse tap types.
- REDTIGER Multi-Size Kit: A versatile USB-C kit that outputs 5V/3A and cuts power within 60 seconds if voltage drops below 11.8V.

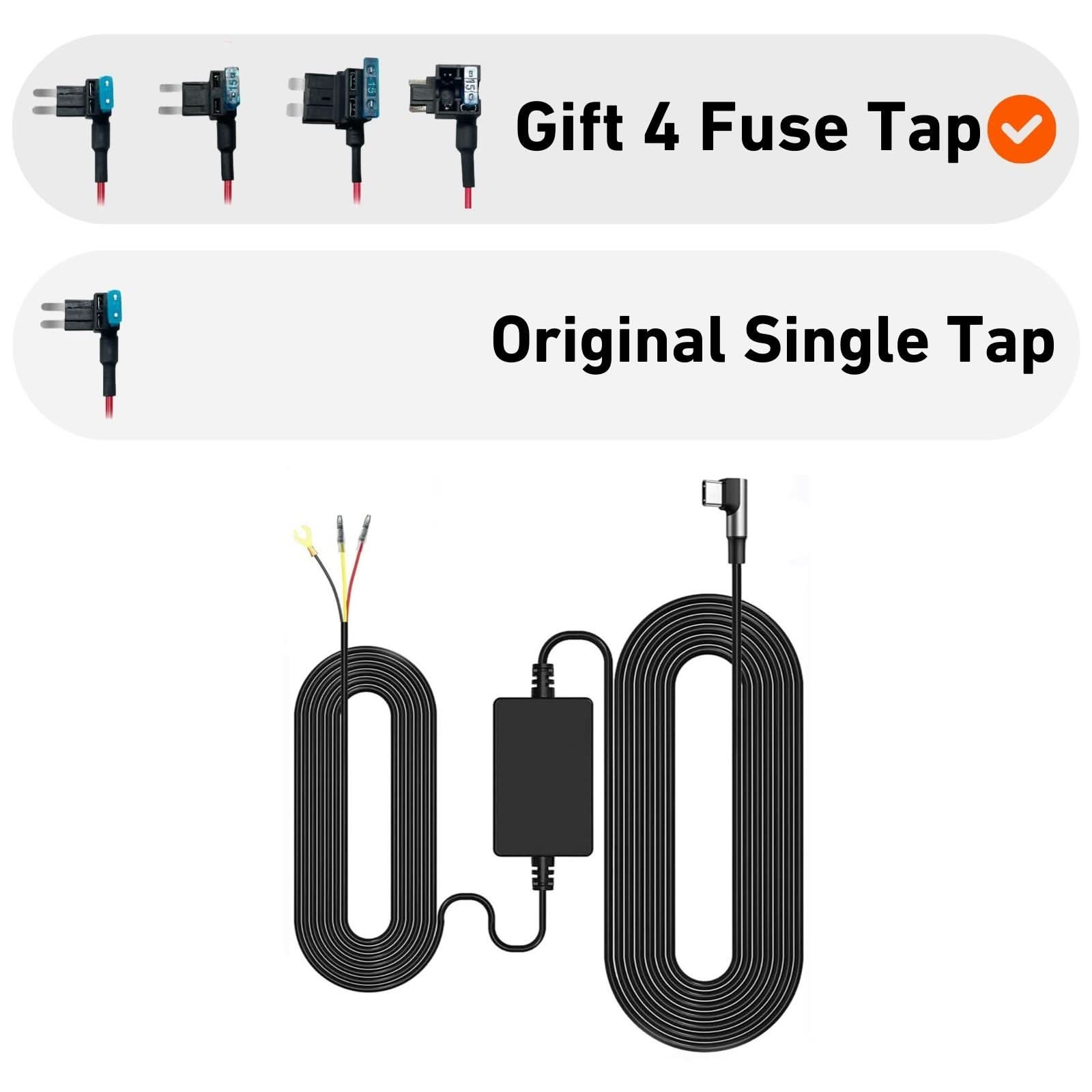

- WOLFBOX Multifunctional Kit: Offers specialized options like an 11.5ft OBD kit or a 20ft extended kit ($28.99).
When to avoid either option
There are times when neither a pack nor a kit is the right move.
Skip the hardwire kit if your car’s battery is already weak or failing; you are inviting a no-start situation. Similarly, if you live in an extremely hot or freezing climate, a battery pack may struggle to charge or could even swell due to temperature stress.
Finally, avoid “bad hardwiring.” Never cut your factory wires, never guess which fuse to use, and never route cables near your vehicle’s airbags.
FAQ
Which route is cheaper? The hardwire kit, at roughly $10–$20 against $60–$150 for a decent battery pack. The saving comes with the risk of drawing on your starting battery.
Can parking mode really leave me stranded? It happens. One owner came back after three days to a battery sitting at 10V, and a year of constant draw can ruin a 12V battery even with a cutoff fitted.
Where should I set the low-voltage cutoff? Somewhere the camera can actually reach. Quality kits often cut at 11.6V. Set it as high as 12.4V on an older battery and parking mode may never switch on, but set it too low and the battery can pass the point of no return.
How long does the install take? A single-channel hardwire runs 45–90 minutes, and a front-and-rear setup 90–120 minutes. A battery pack is generally simpler but needs daily charging.
Does a battery pack have weak points? Climate. Below 0℃ many packs will not charge, and short trips may leave you with about 3 hours of parking mode. Sustained heat degrades the cells, and some owners report packs swelling after a couple of years.
Which fuse and amperage do I use? Match the tap to your car’s form factor — Micro2, Micro3, Mini, ATO, or LPM — put the original fuse in the slot nearest the blades, and use a 2A or 5A fuse for the camera. A 15A fuse on a 0.5A camera is a fire risk.
