Always-on vs switched — what it means
You pull the key out, step away from the truck, and glance back to see the blue light on your FM transmitter still glowing. That adapter was plugged into an always-on 12V socket. This article tells you how to tell whether your car’s sockets are always on or switched, and how to match each device to the right circuit.
Vehicle manufacturers wire their auxiliary power sockets in two main ways. An “Always-On” socket maintains a constant 12-volt connection straight to the car battery, whether the engine is running or the key is in your pocket. That constant path creates a real battery-drain risk. The socket gives electricity a way to leak out continuously.
A “Switched” socket is different. It only receives power when the ignition is in the Accessory or Run position. Once you turn the car off, the circuit breaks and the power cuts out automatically. This setup is much safer for preventing accidental battery drain.
Keep in mind that even modern cars have a “parasitic draw.” This is the tiny amount of electricity (usually 50–85 mA) that the car’s own computers use while parked. An always-on outlet adds to this baseline. Even a simple phone charger with no phone attached can draw 20–50 mA of standby current just to keep its internal components ready. Over a few days or weeks, that extra draw can kill a healthy battery.
While older vehicles were almost always always-on, modern cars increasingly use switched power. However, there is no universal standard. You cannot assume your car follows one rule or the other without checking.
Which devices need which circuit
Choosing the right circuit depends entirely on what you plan to plug in.
- Always-on circuits: These are best for security devices, like parking-mode dash cams, or portable coolers that need to run overnight.
- Switched circuits: These are safer for everyday items that are easy to forget, like phone chargers, FM transmitters, or GPS units.
If you plug a small FM transmitter into an always-on socket, the tiny blue light on the device might stay glowing even with the key out. That small light can push a weak battery over the edge. Using a switched circuit for these items ensures they won’t be left running by accident.
Diagnose your vehicle’s 12V outlets
Don’t rely on your owner’s manual or the labels on the fuse box. Manufacturers don’t follow a consistent design, so the only way to be 100% sure is to test it yourself.
The most reliable method is to use a multimeter or a simple circuit tester. Plug your tester into the 12V socket and cycle through your ignition positions. If the tester shows power while the key is out of the ignition, you have an always-on socket.
You can also use a known device to check. Plug in something with an indicator light, like a phone charger. If the light stays on after you turn off the car, the socket is always-on. Be aware that some cars, like certain Mustang S550 models, may keep the socket powered if something is physically plugged into it.
On many American-made vehicles from GM, Ford, or Chrysler, the 12V ports are often always-on. Many import vehicles, however, tend to use ignition-controlled sockets.
Adding an always-on circuit safely
If you need constant power for a dash cam’s parking mode, you can add your own circuit using an “add-a-circuit” fuse tap. This tool lets you piggyback into an existing fuse slot without breaking the original circuit.
When using a fuse tap, follow these steps:
- Remove the fuse from the slot you want to use.
- Place that original fuse into the lower slot of the tap.
- Put your new accessory fuse into the upper slot.
- Insert the tap into the slot.
Orientation is critical. Power must flow into the pin that is opposite the long output wire. If you install the tap backwards, the power will incorrectly flow through both fuses.
For a standard hardwire kit, remember the wire colors:
- Red: Connects to constant (always-on) power.
- Yellow: Connects to accessory (switched) power.
- Black: Connects to the vehicle chassis ground.
Since most dash cams pull under 1 amp, a 2A or 3A fuse is plenty. Some manufacturers ship them with a 5A fuse, which is also perfectly fine.
Adding a switched circuit when your vehicle has always-on
If your car came with an always-on outlet but you want it to turn off with the key, you can often convert it with a simple wiring change.
Always-on outlets are typically connected to the battery (often called “30 power”) via a 15A fuse. Switched outlets connect through an ignition-triggered relay (often called “15 power”).
Some vehicles allow you to flip this setup just by moving a fuse. For example, on a 2014–2023 Chevy Silverado, you can relocate a fuse in the dash panel to change an outlet from always-on to key-only. Similarly, on VW MQB-platform cars, the sockets are switched by default. Moving the 20A yellow fuse one slot over can make them always-on.
Tools and wiring for a hardwire upgrade
Before you start any electrical work, gather the right kit. You will need:
- A digital multimeter or circuit tester.
- An add-a-circuit fuse tap that matches your vehicle’s fuse type (micro, mini, etc.).
- 14–16 AWG stranded automotive wire (red for positive, black for negative).
- A ring terminal for your ground connection.
- An inline fuse, wire loom, and zip ties for a clean install.

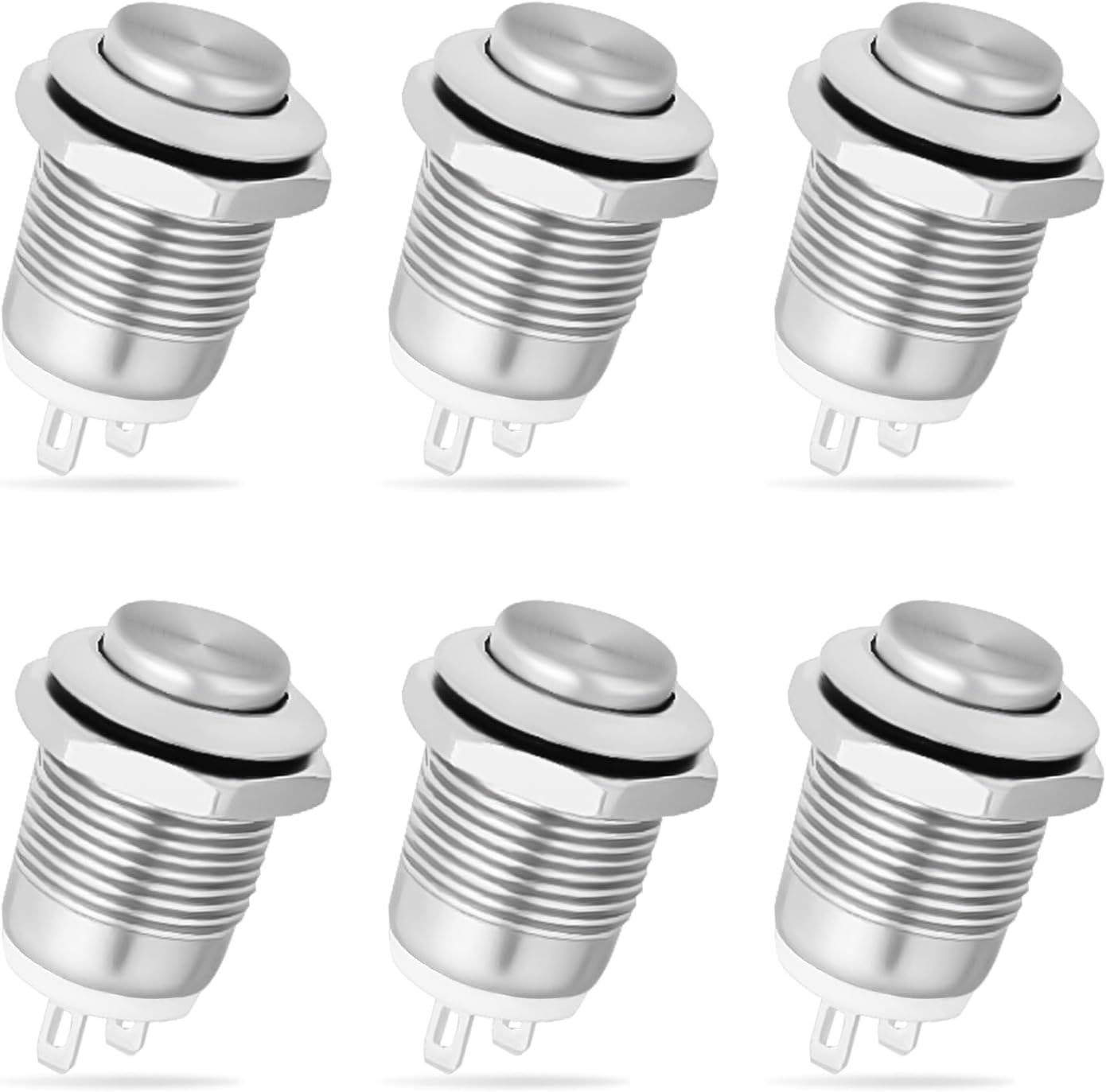

12mm Momentary Push Button Switch 6PCS 12V Waterproof Stainless Steel Small Round Power Push Button Switches 2 Pin for Car Automotive Truck Boat Marine Off-Road Vehicle
gearnudge.com
- Best for
- Useful for creating your own manual switched power controls.
- Avoid if
- You need confirmed live price or guaranteed fit from this page.
- Evidence
- Listing and source evidence
Real-owner caution stories
Online forums are full of stories about dead batteries caused by forgetting what was plugged in.
Owners of Mazda CX-5 and CX-9 vehicles have reported finding their cars dead because they left a portable cooler plugged into an always-on trunk port overnight. It is a common mistake that often leads to a frustrating morning and a need for a jump-start.
Even small, seemingly harmless items can be the culprit. One truck owner found that an FM transmitter’s blue LED stayed lit after the key was removed, eventually draining a weak battery.
Avoid-if: when not to use always-on sockets
You should avoid using an always-on socket for any device if your car’s computer doesn’t automatically cut power when the battery gets low. Instead, check your vehicle’s behavior first—test the socket with the key off, or consult your owner’s manual—before leaving anything plugged in.
If your car’s computer doesn’t automatically cut power when the battery gets low, an always-on outlet is a trap. The 50–85 mA of normal parasitic draw is already stressing the battery. Adding a device that stays on indefinitely could lead to a dead battery, especially in cold weather.
FAQ
Will a 5A fuse work? Yes. Most dash cams pull less than 1 amp, so a 2A or 3A fuse is more than enough. However, a 5A fuse is also acceptable if that is what your manufacturer provided.
Does BCM RAP save me? Retained Accessory Power (RAP) is a feature where the car’s computer keeps certain things like the radio or windows alive for a few minutes after you turn the key off. However, this usually stops once you open the driver’s door. You should verify if your 12V socket is actually part of that managed circuit before relying on it.
How long until the battery is dead? It depends on the device, but the combination of normal parasitic draw and a plugged-in device’s standby current can reduce battery life over a period of just a few days or weeks.
